Item NO.:
RS-SL-60WPayment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
ChinaShipping Port:
Xiamen,ChinaLead Time：

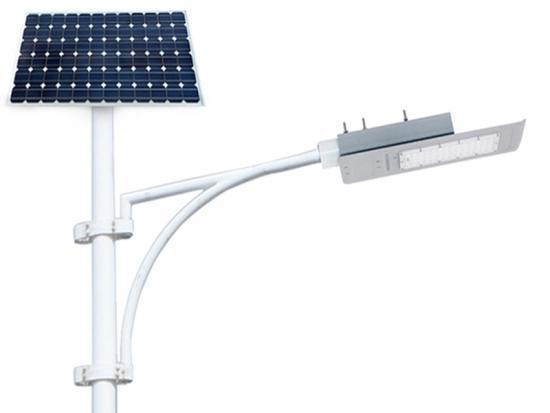

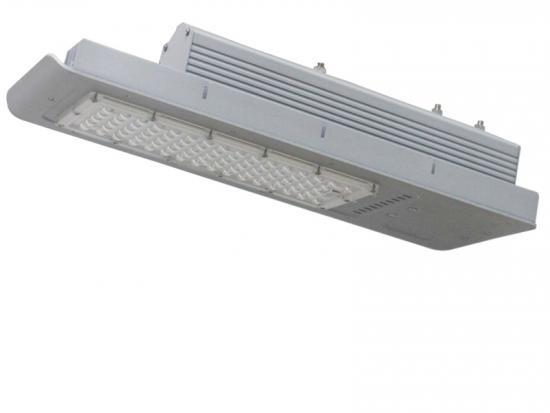

20-30 working daysLED solar street light

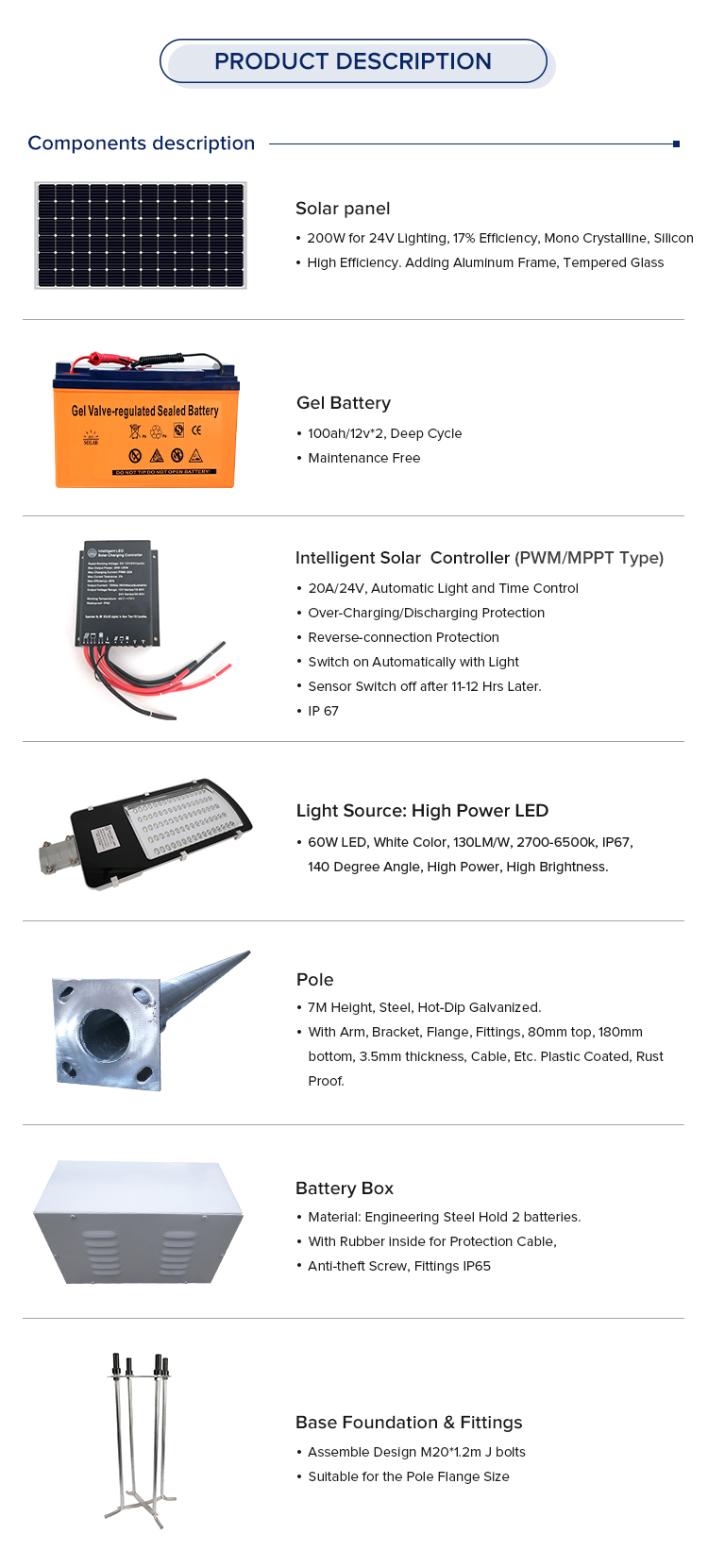

Product Description
Advantages
| Led solar street light Specifications | |||||||||||
| Part NO | BST-STL-20W-S002 | BST-STL-30W-S02 | BST-STL-60W-S02 | BST-STL-80W-S02 | BST-STL-100W-S02 | BST-STL-120W-S02 | |||||
| Power | 20W | 30W | 60W | 80W | 100W | 120W | |||||
| Size(mm) | L366*W135*H85 | L366*W135*H89 | L431*W160*H89 | L431*W160*H89 | L632*W215*H90 | L632*W215*H90 | |||||
| Luminous Flux | 2200-2400 | 3300-3600 | 6600-7200 | 8800-9600 | 11000-12000 | 13200-14400 | |||||
| Light distribution | 140*70 | ||||||||||
| CCT | 2700-6500K | ||||||||||
|
Color rendering index(CRI) |
Ra>80 | ||||||||||
| Light efficiency | 110-120lm/W | ||||||||||
| LED chip | LUMILEDS LED chips | ||||||||||

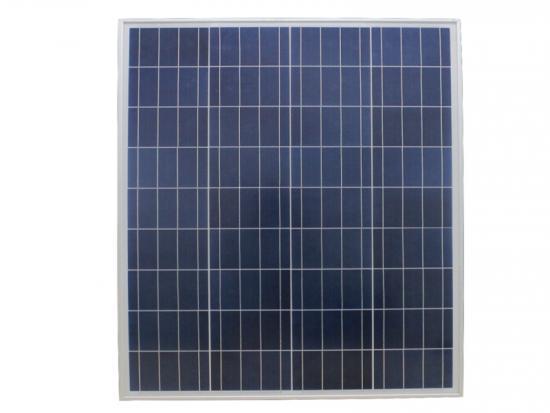

| Solar Module | 80W | 80W | 100W | 100W | 150W | 180W | |||||
| Solar panel life | 25 years | ||||||||||
| Lithium iron phosphate battery | 12V 65AH | 12V 100AH | 12V 100AH | 12V 120AH | 12V 150AH | 12V 200AH | |||||
| Housing color | Silvery grey | ||||||||||
| I Prate | IP65 | ||||||||||
| Housing material | Excellent Aluminum +PC lens | ||||||||||
| Working temperature | -20°C ~ +50°C | ||||||||||
| LED Life span | 50000 hours | ||||||||||
| warranty | 5years | ||||||||||

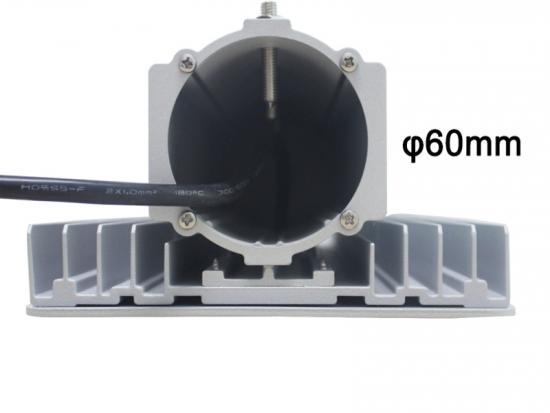

Product Dtetails

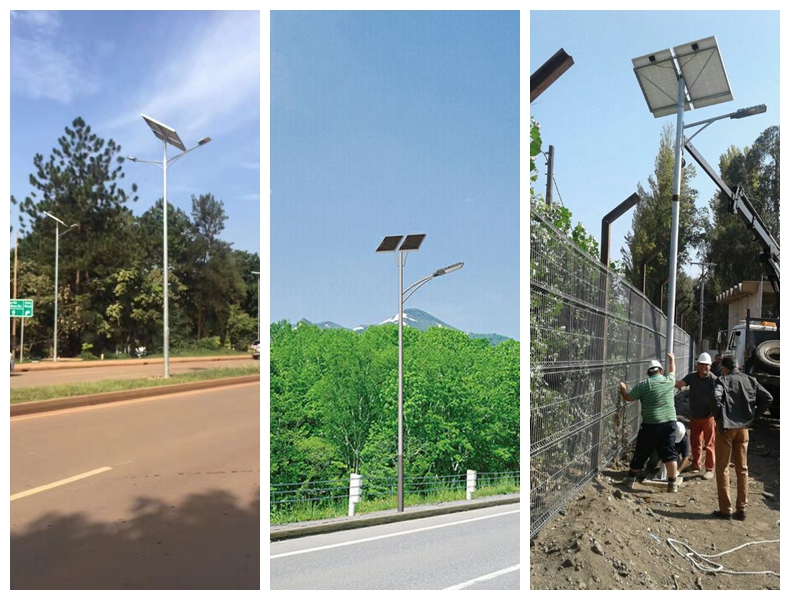

Applications
leave a messageXiamen Ray Solar Technology Co., Ltd. , driven by its mission "Green Energy", is a global leading manufacturer of solar racking,tracking systems,floating and carport systems, providing one-stop reliable solar mounting system solutions with 5GW sold over 80 countries and regions worldwide.
All in one Waterproof Solar Street LED Light,all-in-one design, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.
All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.
Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.
Concrete Foundation Ground Solar Mount is easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
Horizon P1 - Horizontal Single Axis Tracker (Linear Actuator / Push Rod)
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure: The feature of PHC Piles solar mounting structure is that it can be suitable for countries with many rainy seasons, including swamp areas, which can be used in this way to protect the integrity of solar panels.
The horizontal Single Axis Tracking System uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System.Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
